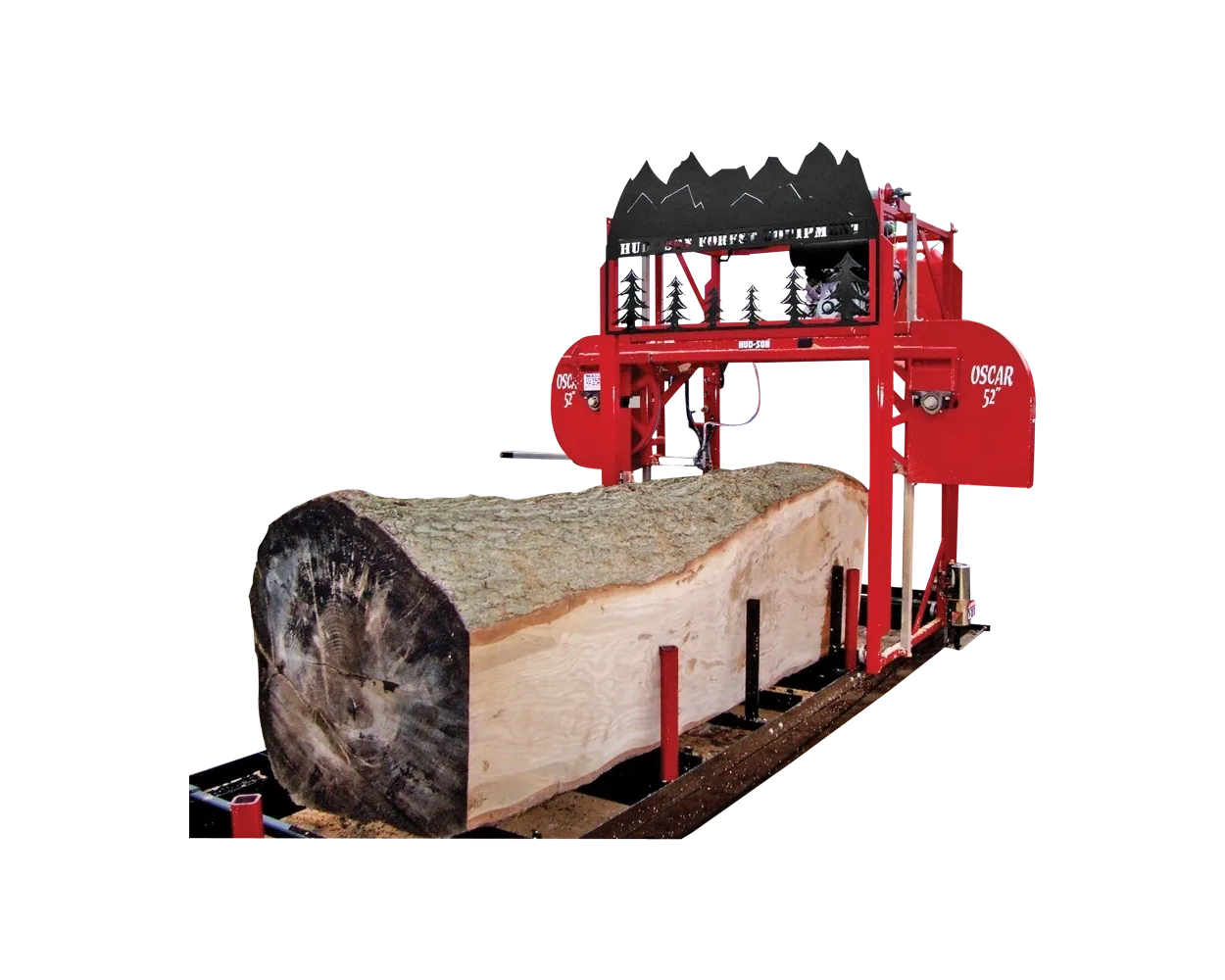

Oscar 52-35

$30,485.00
Call to Backorder
SKU
Oscar 52-35 DPF SW

The Oscar-52 Sawmill has a huge 52″ log capacity and can cut up to a 48″ wide board, making it perfect for all those large logs that most other mills cannot begin to process. The wide throat enables you to cut slabs for tabletops, counter tops, mantles and much much more. These products are extremely unique and have a greater value than lumber. Being able to cut custom items adds endless potential of large trees, stumps, burls, and more which otherwise could have been considered waste.  The Oscar 52 is easy to operate and maintain which leaves you more time to mill and sell your products. This mill is available with multiple engine and track options so that you can customize it to your needs.

INCREASE PROFITS WITH BIGGER LOGS AND WIDE SLABS

• Designed to cut large logs that conventional sawmills can’t handle

• Boasting 52″ Diameter logs and 20″ dept of cut

• Many available options to fit your needs.

CUTTING

  • Max Log Capacity
    52″ Diameter
  • Distance Between Guide
    48″
  • Max Thickness of Cut
    20″
  • Standard Track Length
    21′ / 3 – 7′ Sections
  • Log Dogs
    3 Cam Style Dogs & Square Posts
  • Max Log Length (with standard track)
    16′
  • Blade
    221 X 1.5 X .045″
  • Blade Lubrication
    5 Gallon
  • Track Sweeps
    Yes
  • Dual Power Feed
  • Setworks

POWER

  • Engine / Motor
    23hp Gas (larger options available)
  • Clutch Engagement
    Centrifugal

CONSTRUCTION

  • Frame
    4 Post with Lift Tubes
  • Bandwheels
    25″
  • Guide System
    Dual Shoe Guides, 1 Adjustable
  • Lift System
    Power Lift System w/ Control
  • Measuring
    Dual Scale 1″and 4,5,6,8 Quarter
  • Main Bearings
    1 15/16″
  •

WARRANTY

  • 1-Year Limited Warranty
    Commercial Use
  • 2-Year Warranty
    Main Shafts and Bearings
More Information
Price $30,485.00
