Oscar 528

$6,495.00
Call to Backorder
SKU
Oscar 528

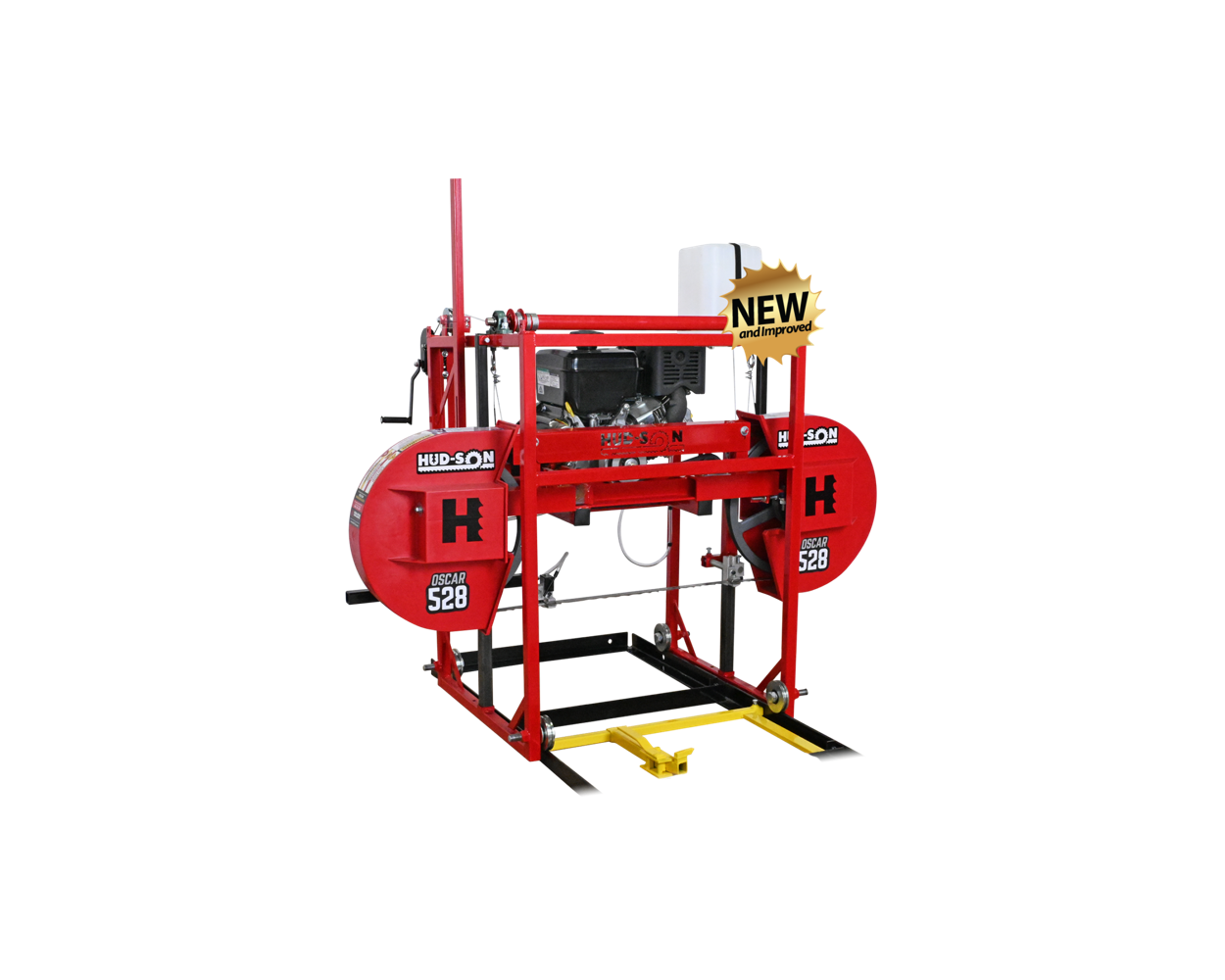

The Oscar 528 is the first in the Oscar line of sawmills. Powered by a stout 14 horsepower electric start gas motor or 5hp 220v electric motor, this mill will muscle through the cut with ease. The unit uses the same large diameter clutch we run on our larger mills to give trouble free service and longevity. This sawmill has a manual winch to set your depth of cut and has the dual scale system to allow for maximum versatility in cutting dimensional lumber. The mill is also manual feed through the cut. All you have to do is gently push on the carriage. Optional Power Feed System available too. As in the entire Oscar sawmills this mill has a moveable guide tube that allows you to keep the band blade guides close to the wood for maximize accuracy.

CUTTING

  • Max Log Capacity
    28″ Diameter
  • Distance Between Guide
    24″
  • Max Thickness of Cut
    9″
  • Standard Track Length
    18′ / 3 – 6′  Steel Sections
  • Log Dogs
    2 Cam Style Dogs & Square Posts
  • Max Log Length (with standard track)
    15′
  • Blade
    132 X 1.25 X .035″
  • Blade Lubrication
    5 Gallon
  • Track Sweeps
    Standard

POWER

  • Engine / Motor
    14hp Gas- Electric Start / 5hp 220V
  • Clutch Engagement
    Centrifugal

CONSTRUCTION

  • Frame
    4 Post with Lift Tubes
  • Bandwheels
    16″
  • Guide System
    Dual Shoe Guides, 1 Adjustable
  • Lift System
    Lift Bale
  • Measuring
    Dual Scale 1″and 4,5,6,8 Quarter
  • Main Bearings
    1.5″

WARRANTY

  • 3-Year Limited Warranty
    Residential Use
  • 6-Year Warranty
    Main Shafts and Bearings
