H360 Sawmills

$27,995.00
Call to Backorder
SKU
H360-35

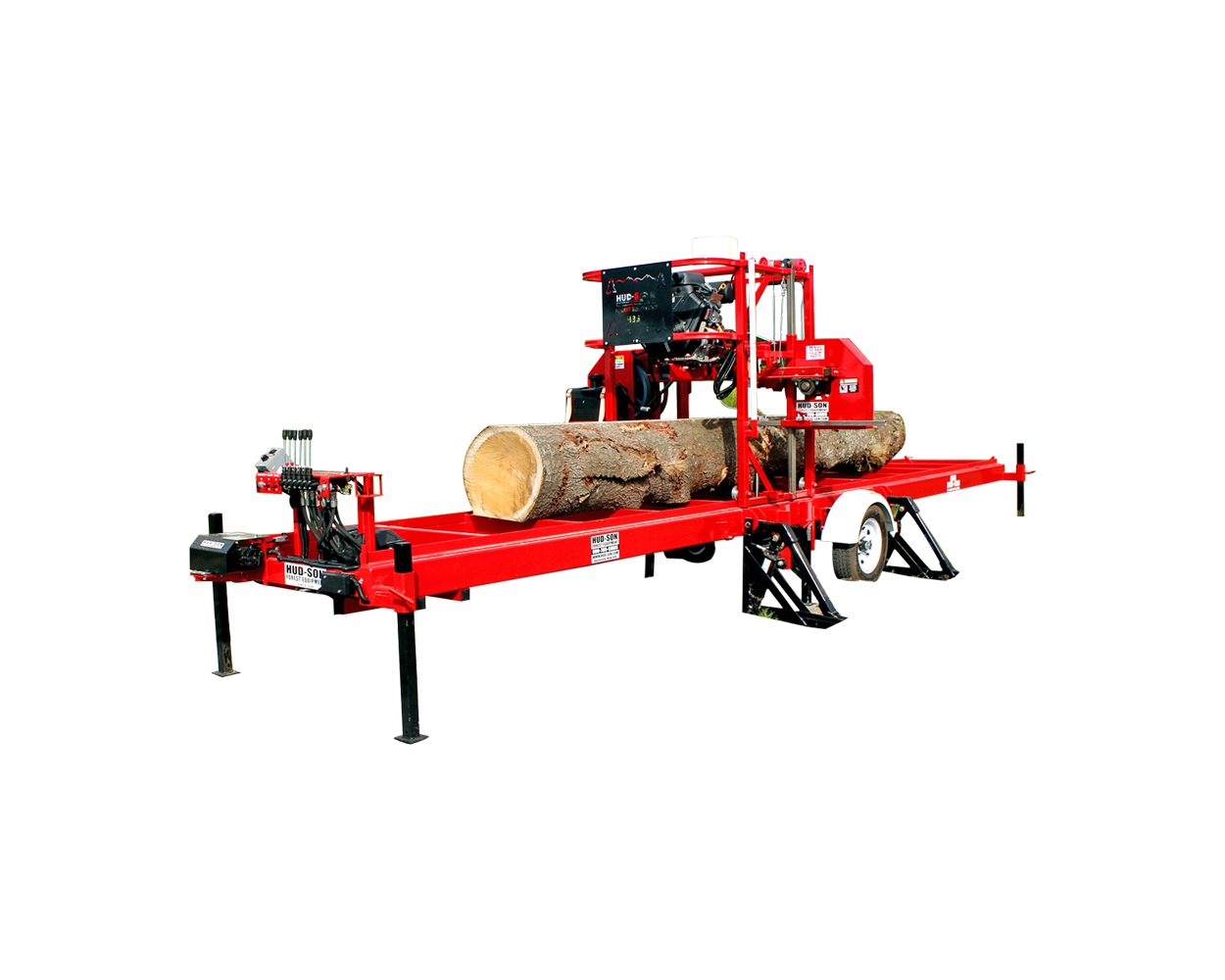

Hud-Son H360 Hydraulic Portable Sawmill comes standard with a 23hp engine(other engines available), adjustable power feed, power throttle, power height adjustment, a hydraulic log loader, hydraulic log turner and heavy-duty 24-foot trailer. Built for the production minded sawyer, this sawmill is available with multiple engine options and optional hydraulic power dog and hydraulic backstops. This unit has a 36” diameter and 18-foot length capability. Easily set up in 10 minutes the mill will do the hard work for you. The sawyer runs the mill from a stationary position in the front of the mill that provides great vision of all the functions of the mill. All the essential bells and whistles without the high price!

CUTTING

  • Max Log Capacity
    36″ Diameter
  • Distance Between Guide
    31″
  • Max Thickness of Cut
    11″
  • Standard Track Length
    24′ 3 X 6″ Box Beam
  • Log Dogs
    3 Cam Style Dogs & Square Posts
  • Max Log Length (with standard trailer)
    18′
  • Blade
    167 X 1.25 X .042″
  • Blade Lubrication
    5 Gallon
  • Track Sweeps
    Yes

POWER

  • Engine / Motor
    35hp Gas – Electric Start
  • Clutch Engagement
    Centrifugal
  • Hydraulic Log Loader
    Standard Included
  • Hydraulic Log Turner
    Standard Bi-Directional


CONSTRUCTION

  • Frame
    4 Post with Lift Tubes
  • Bandwheels
    19″
  • Guide System
    Dual Shoe Guides, 1 Adjustable
  • Lift System
    Power Lift System w/ Control
  • Measuring
    Dual Scale 1″and 4,5,6,8 Quarter
  • Main Bearings
    1.5″


WARRANTY

  • 1-Year Warranty
    Commercial Use
  • 2-Year Warranty
    Main Shafts and Bearings
More Information
Price $27,995.00
