72HD+ Arbor Pro

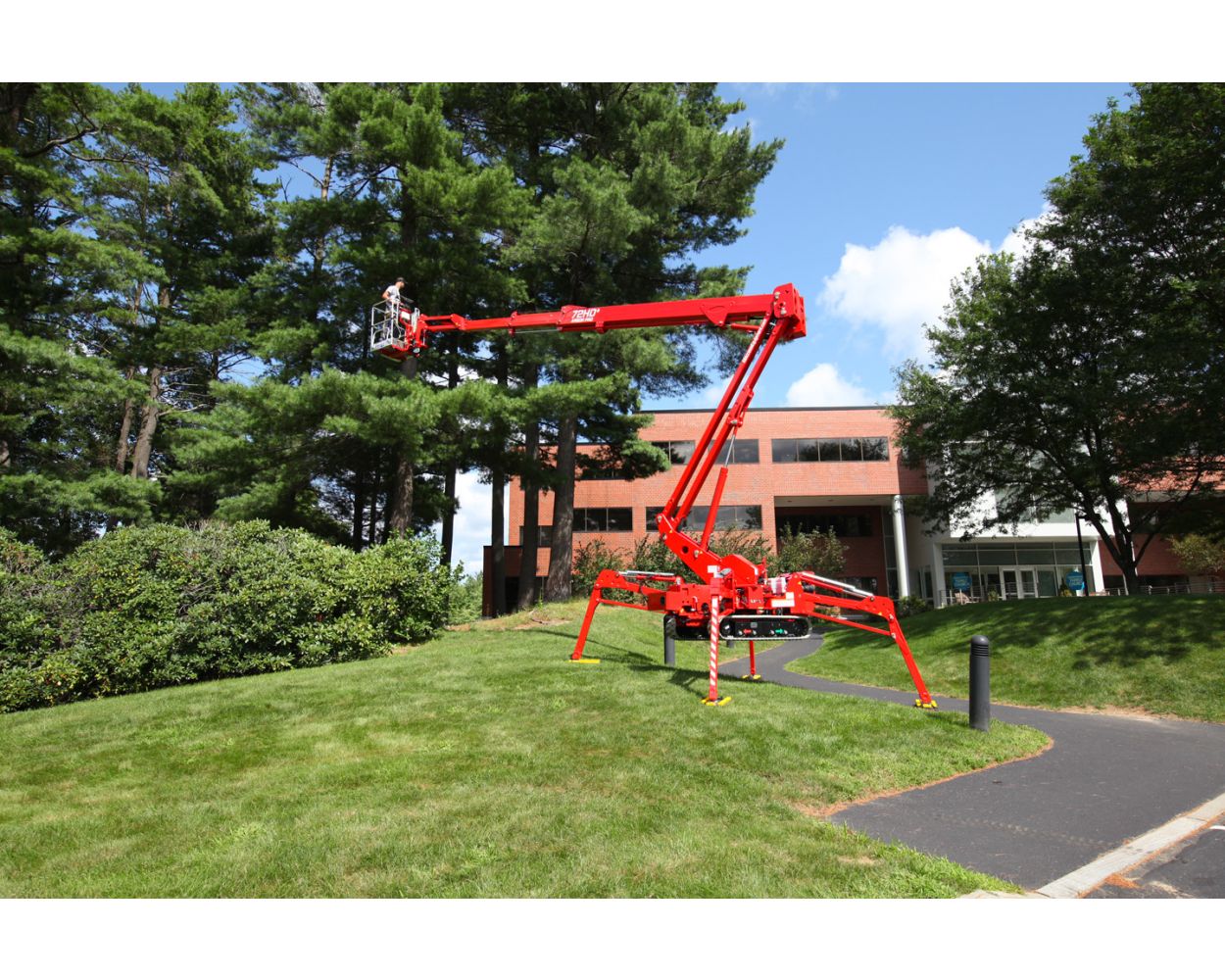

72HD+ Arbor Pro Tracked Aerial Lift
CMC 72HD+ Arbor Pro including all below standard features
- Kubota Z602 diesel, 16.8 HP, vertical 4-Cycle Liquid Cooled Diesel
- 12V Battery backup electric pump (intermittantly use the 12V battery to operate all functions)
- 710° non-continuous boom rotation
- Solid single lower boom
- Triple telescopic upper boom
- Independently articulating jib
- High pressure air/water hoses routed internally from the ground to the basket - 2,900 PSI
- Wireless remote control all functions including booms, outriggers, track drive, automatic leveling, speed controls, and home function
- "Deadman" safety footpedal
- Wired control panel in basket with single handed operation (when using footpedal) All functions may be controlled from the basket, including booms, outriggers, track drive, automatic leveling, speed controls, and home function
- Cable to connect wireless remote in case of a problem with the wireless system.
- Radio remote control storage box and built in battery charger for radio remote lithium batteries
- Black rubber tracks (set)
- Horizontal hydraulically adjustable tracks
- Automatic outrigger self leveling
- Removable single man aluminum basket with rounded outer corners for better versatility. Size is 31.5" L x 27.5" W x 43.3" H
- 180° Basket rotation (+/- 90° each way)
- Ability to raise basket & jib up out of the way while driving the tracks
- Remote connection kit (All Access can connect to machine remotely if unsecured WiFi is shared with machine)
- 1 & 3 years warranty. 1 yr "bumper to bumper" and 3 yrs on certain components. Unlimited use hours
- Two (2) lithium batteries and built in charger for radio remote control
- Detailed owners maintenance and use manual, including parts and service diagrams
- Four (4) specially designed sliding outrigger pads
- One (1) Fall arrest safety harness
| Price | $145,995.00 |
|---|
