4680XP - TOWABLE
THE BEAST® HORIZONTAL GRINDER

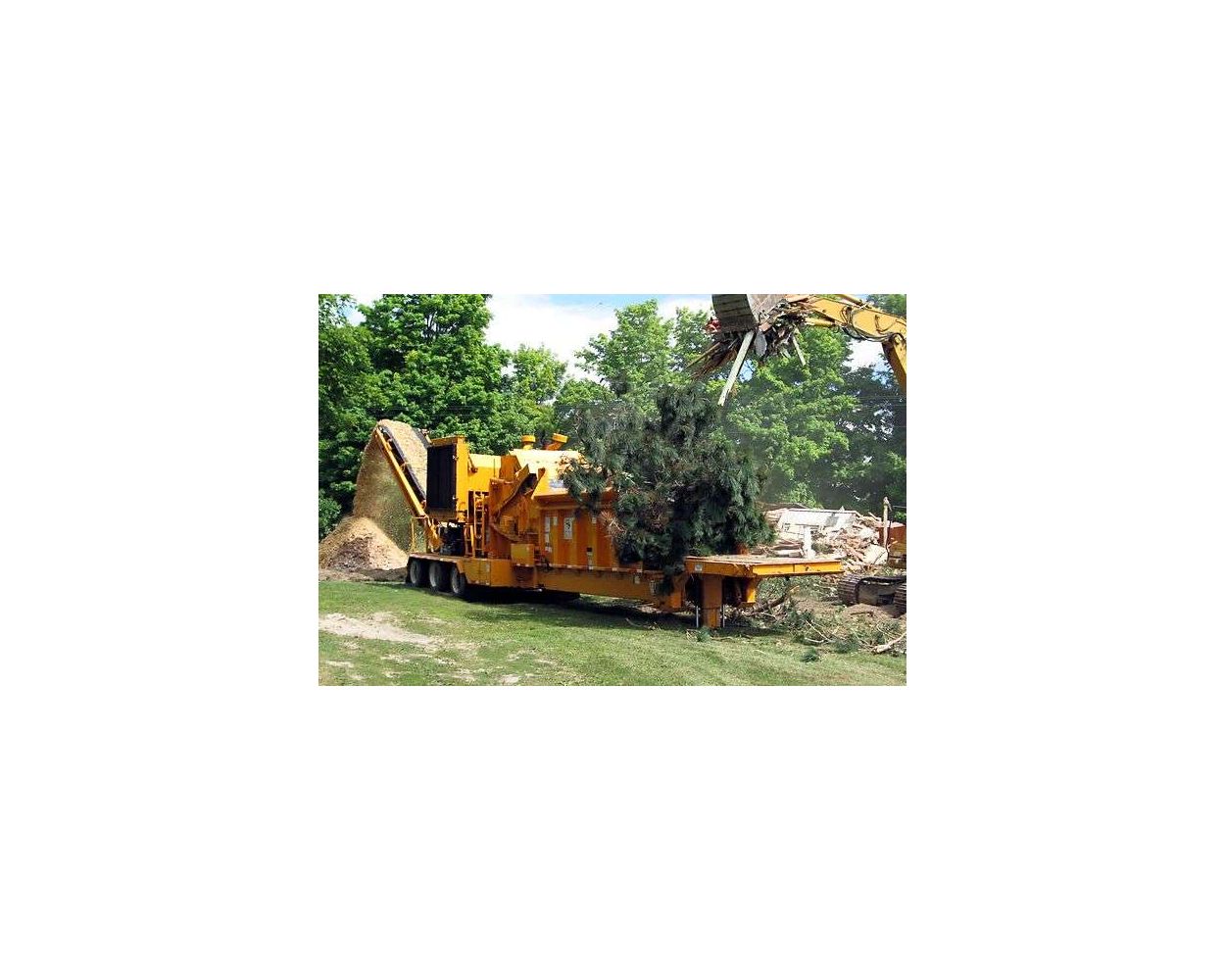

The Model 4680 is the largest tow-behind \"Beast\" model offered by Bandit featuring a massive 60\" diameter cuttermill equipped with 48 teeth. A large 45\" high x 60\" wide mill opening gives adequate room to grind large diameter stumps, logs, and whole trees. Engine options include a Caterpillar C27, 1,050 horsepower or Caterpillar C32, 1,200 horsepower engine.
Four 25,000 pound axles with (16) 11R/22.5, 16 ply tires mounted on 10 bolt hub pilot dual rims are standard.
The large 17' 10\" long x 60\" infeed is easy to load and the slat style infeed conveyor is constructed of WDH-120 for added strength and durability. A proportional feed is standard with six speed settings that can be adjusted based on material being processed and the desired end product.
Like all Bandit Beast models, the 4680 is equipped with cutterbodies that cut material apart. Various teeth and screen options are available so the machine can be set-up based on the type of material being processed and the desired end product.
Key Features & Options
- (4) 25,000 pound air brake axles with (16) 11R/22.5" tires mounted on dual rims
- Standard fifth wheel hitch
- 1,050 or 1,200 horsepower diesel engine options
- 17' 10" long x 60" steel infeed conveyor (actual hopper length - 16' 4")
- (1) 30" diameter feed wheel controlled via remote control
- 59 1/2" diameter x 63" wide cuttermill with 48 teeth
- (1) 10' long primary and (1) 25' 6" long secondary height adjustable discharge with magnetic head pulley (56" wide)
- Bandit control panel with proportional feed (6 infeed speeds)
- Radio remote control with tether back-up
