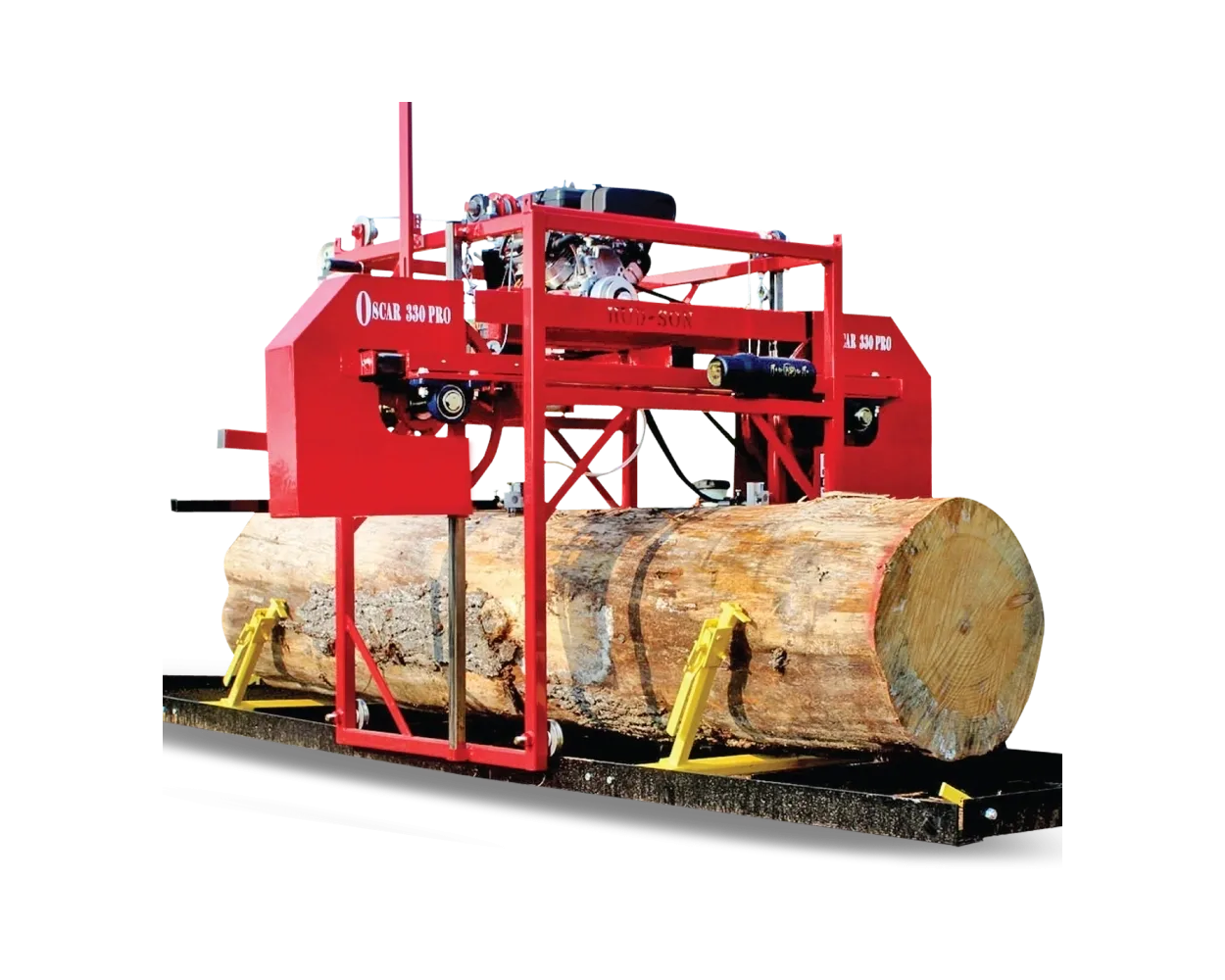

Oscar 330 Honda

$9,395.00
Call to Backorder
SKU
OSCAR 330-GX630

This model is economically priced for any woodcutter and comes standard with a 20hp Honda engine and three 7 foot 3″ welded angle iron ground tracks. This Pro portable sawmill can help you with all of your lumber needs without hassle. This mill has a hand crank for height adjustment and is manually pushed through the cut. Comes with a few nice features allowing the operator to customize the controls and sight gauge to fit them. Options like a power feed system or road trailer are available for this mill.

CUTTING

  • Max Log Capacity
    30″ Diameter
  • Distance Between Guide
    32″
  • Max Thickness of Cut
    11″
  • Standard Track Length
    21′ / 3 – 7′ Sections
  • Log Dogs
    3 Cam Style Dogs & Square Posts
  • Max Log Length (with standard track)
    17′
  • Blade
    167 X 1.25 X .042″
  • Blade Lubrication
    5 Gallon
  • Track Sweeps
    Yes

POWER

  • Engine / Motor
    20hp Honda
  • Clutch Engagement
    Centrifugal

CONSTRUCTION

  • Frame
    4 Post with Lift Tubes
  • Bandwheels
    19″
  • Guide System
    Dual Shoe Guides, 1 Adjustable
  • Lift System
    Cable Lift Bale System
  • Measuring
    Dual Scale 1″and 4,5,6,8 Quarter
  • Main Bearings
    1.5″

WARRANTY

  • 3-Year Limited Warranty
    Residential Use
  • 1-Year Limited Warranty
    Commercial Use
  • 6-Year Warranty
    Main Shafts and Bearings
